Overview: Why the Full-Spectrum Microplate Reader Matters in Modern Laboratories

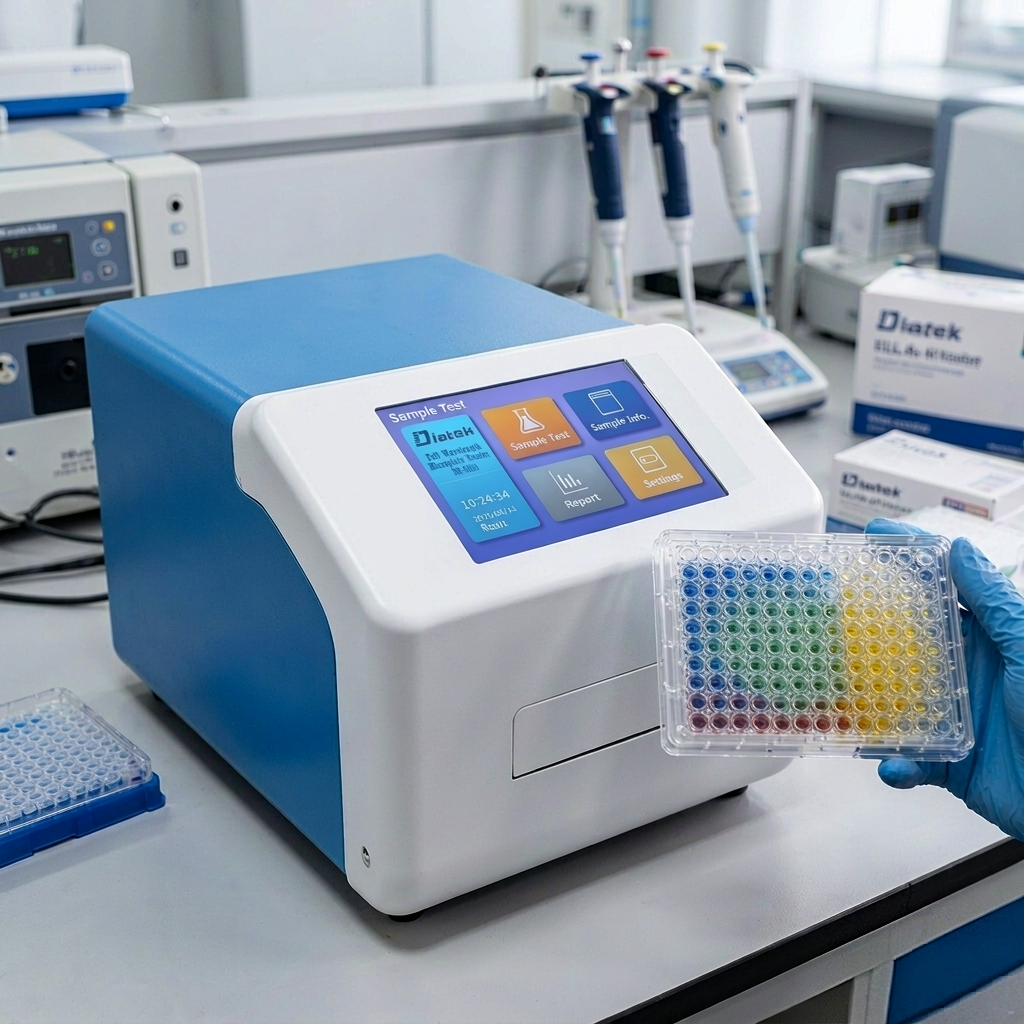

Laboratories handling biological, chemical, and physical assays frequently struggle with the limitations of fixed-filter instruments—manual filter changes, restricted wavelength ranges, and workflows that slow down multi-assay testing. The DR-5000 Full Wavelength Microplate Reader, developed by Wuxi Hiwell-Diatek Instrument Co., Ltd. under the Diatek brand, addresses this exact pain point by combining a filter-free monochromator with an Android-based touch interface, offering a flexible, high-resolution detection platform for researchers who need broad spectral analysis without added hardware.

Core Optical Technology: Filter-Free Wavelength Selection

At the heart of the DR-5000 is a proprietary monochromator technology built on high-precision gratings, enabling filter-free wavelength tuning across the full 190–1100 nm range. Wavelengths can be freely selected in 0.1 nm or 1 nm increments, which means laboratories no longer need to purchase additional filters to run different assays. This full-spectrum flexibility directly resolves the traditional constraint of limited reading ranges that slow down workflows requiring multiple assay types.

Supporting this optical system are technical performance metrics that define the instrument’s reliability:

• Wavelength Accuracy: ±0.5 nm
• Absorbance Stability: ≤±0.002A
• Wavelength Repeatability: ≤0.2 nm
• Detection Speed: 10 seconds for a 96-well plate

The instrument also offers a choice between a dual light source system (Deuterium and Tungsten halogen lamps) or a high-energy Xenon flash lamp, giving laboratories flexibility based on their specific testing needs. For the DR-5000 Pro model, stray light control is tightened to ≤0.05%, alongside high-speed reading capabilities of 16.5 seconds for continuous 96-well reading, reflecting the product’s tiered positioning between standard and professional configurations.

Operational Design: Android-Based Touch Control

A defining differentiator of the DR-5000 is its 10-inch capacitive color LCD touchscreen running on an Android-based instrument control platform. This design brings a smartphone-like, intuitive interface directly into the laboratory environment, significantly reducing the learning curve for operators. The visual workflow follows a straightforward "Layout → Analysis → Processing" sequence, which Diatek states streamlines daily operation while remaining compliant with IVD human factors engineering standards.

The system also integrates an automatic open/close plate drawer with motorized control for microplate entry and exit. This feature is designed to prevent manual handling errors and protect the optical path, while also supporting built-in incubation for consistent environmental control during kinetic assays. The incubation module operates from Room Temperature +4°C up to 45°C, ensuring stability for temperature-sensitive biological reactions. Complementing this is a multi-speed shaking function offering linear and orbital shaking with three speed settings, optimizing sample mixing while preventing liquid spilling.

Data Processing and Software Capabilities

The DR-5000 is paired with the Diatek Microplate Analysis Software, which can be used in standalone mode or in PC-connected operation. This software supports real-time endpoint and kinetic data analysis, along with multiple built-in calibration methods including Log-Log, Power, and Polynomial models. More advanced analytical needs are addressed through 4-Parameter Logistic (4PL) regression, spectral scanning, kinetic data analysis, and multiple linear/non-linear regression modeling—technical methods that support complex data reduction and report generation across varied laboratory applications.

For connectivity, the instrument supports USB-A and USB-B interfaces, compatible with U-disks, USB printers, and peripheral input devices such as keyboards and mice. An FTP service allows PC software to upload and download detection data, with export formats including TXT, PDF, Word, and Excel, giving laboratories flexibility in how they document and share results.

Data Security and Standards Compliance

Given the sensitivity of laboratory and diagnostic data, the DR-5000 incorporates password-protected user login for instrument access, alongside SSL and PCI DSS protocols for transaction and data protection. These same standards extend to the company’s e-commerce operations, where the product is sold under Alibaba.com Trade Assurance Verified status—a certification that provides order refund and shipping protection for international buyers.

Industry Applications Across Scientific Disciplines

The DR-5000’s full-spectrum capability supports a range of laboratory applications:

• Life Sciences: DNA/RNA quantification with a detection limit of 2ng/µl, as well as protein assays.
• Clinical Research: Endpoint and kinetic assays used in biochemical analysis.
• Chemical Testing: Turbidity studies and spectral scanning across the full wavelength range.

This breadth of application reflects the instrument’s design intent—serving as a single platform capable of supporting biological, chemical, and physical analysis within microplate formats, rather than requiring separate dedicated instruments for each test type.

Market Reach and Customer Base

Wuxi Hiwell-Diatek Instrument Co., Ltd., headquartered in Jiangsu Province, China, has established trade and distribution presence across Brazil, United Arab Emirates, United States, Peru, Algeria, and Chile. The DR-5000 series is positioned to serve provincial laboratories, university research centers, diagnostic test manufacturers, and international laboratory equipment distributors, indicating a customer base that spans both academic and commercial diagnostic settings.

Service Commitments and Long-Term Value

Beyond the hardware itself, Diatek backs the DR-5000 with a structured service model that includes a 1-year free repair warranty, lifetime maintenance services, and a stated 5-year product lifespan commitment. Technical support covers installation guidance, sample handling advisory, training, and ongoing maintenance, along with assistance for software updates and instrument calibration. During startup, the system runs an automated startup check with color-coded status indicators—blue for normal operation and yellow for error states—allowing operators to quickly verify system readiness before use.

Final Assessment: A Flexible, Compliant Choice for Full-Spectrum Testing

For laboratories seeking a full-spectrum microplate reader that eliminates the constraints of fixed-filter systems, the Diatek DR-5000 series offers a combination of broad wavelength coverage (190–1100 nm), Android-based touch operation, automated plate handling, and comprehensive data export and security protocols. Supported by IVD human factors engineering standards compliance, SSL/PCI DSS data protection, and a tiered standard-to-professional (DR-5000 to DR-5000 Pro) product structure, the instrument is built to serve a wide range of biological, chemical, and physical testing needs while maintaining data integrity and long-term service reliability for laboratories across multiple international markets.
