For power line contractors, choosing a pulling rope involves more than checking its maximum breaking force. Rope weight, dimensional compatibility, abrasion resistance, and operating conditions all influence how efficiently a transmission line project can be completed. An unsuitable rope may create handling difficulties, increase equipment wear, or introduce additional risks during installation.

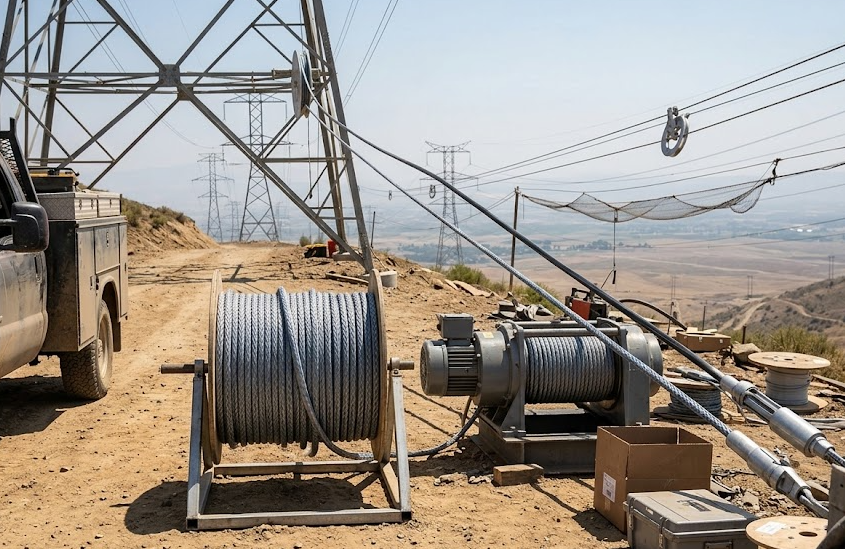

A Dyneema rope is one option for projects that require high tensile strength without the weight associated with conventional steel wire rope. It can be particularly useful for overhead transmission line stringing, pilot-line pulling, and selected crossing operations. However, buyers should evaluate the complete rope specification and verify its suitability for the intended application before making a purchasing decision.
1. Improve Field Handling with a Lightweight Pulling Rope
Transmission line construction often involves moving equipment and materials across uneven ground, between tower locations, or along routes with limited vehicle access. When ropes are heavy or difficult to handle, crews may spend more time transporting, positioning, and recovering them.
Dyneema is a high-performance polyethylene fiber valued for its high strength-to-weight ratio. Depending on the rope construction and required load capacity, it can offer a lighter alternative to conventional steel wire rope, helping simplify transportation and deployment at the worksite.
Donghuan Power Technology offers a heavy-duty Dyneema rope designed for applications such as transmission line stringing, pilot-line pulling, and live-line crossing. The listed product range includes nominal diameters from 4 mm to 18 mm, with corresponding breaking forces ranging from 16.6 kN to 296 kN.
For contractors, the objective is to select a rope that provides sufficient mechanical strength while remaining manageable during field operations. The final choice should reflect the pulling load, route conditions, available equipment, and handling requirements.
2. Match Rope Diameter to the Required Load
Rope diameter is an important purchasing consideration, but selecting a product based solely on its thickness or advertised breaking force can result in an unsuitable configuration. The rope must withstand the anticipated loads while fitting the pulleys, connectors, winches, and other equipment used in the pulling system.
The following specifications are listed for Donghuan Power Technology's Dyneema rope range:
Nominal Diameter Listed Breaking Force 4 mm 16.6 kN 8 mm 58.8 kN 12 mm 137 kN 16 mm 211 kN 18 mm 296 kN These figures represent listed breaking forces, not allowable working loads. The appropriate rope specification must be determined using the calculated maximum tension, applicable safety factor, dynamic loads, bending conditions, and the strength of terminations and connecting components.
Buyers should also confirm the difference between nominal diameter and the finished outside diameter. For this product range, the listed sheathed diameter varies from 5.5 mm to 21 mm. This distinction matters when a rope must pass through existing sheaves or stringing blocks.
Before placing an order, provide the supplier with the intended application, expected pulling force, equipment specifications, and required rope length. This information supports a more accurate selection than diameter alone.
3. Calculate Total Rope Weight for Long-Distance Operations
Rope weight can affect transportation planning and manual handling, particularly when a project involves long pulling distances or multiple deployment points. A lightweight rope may reduce the effort required to move and position equipment, although its actual operational benefits depend on the entire pulling arrangement.
The listed linear density for the Dyneema rope is 9.31 g/m for the 4 mm option and 186 g/m for the 18 mm option before sheathing. With the sheath, the corresponding figures are 13 g/m and 247.3 g/m.
These specifications allow procurement teams to estimate the approximate weight of a complete rope length. For example, when comparing options for a long transmission line route, calculate total weight using the required length and the relevant sheathed linear density.
However, a lower rope weight should not take priority over load capacity, equipment compatibility, or safety requirements. The selected product must meet the project's mechanical requirements before handling convenience is considered.
4. Evaluate Abrasion Resistance and Maintenance Needs
During repeated stringing operations, ropes may contact pulleys, connectors, tower components, and other surfaces. Friction, sharp edges, improper alignment, and repeated bending can gradually affect rope condition. These factors should be considered when evaluating expected service life and maintenance requirements.
The heavy-duty Dyneema rope supplied by Donghuan Power Technology features a protective outer sheath intended to improve abrasion resistance. The sheath provides an additional layer of protection, but it does not eliminate the possibility of wear or damage under demanding working conditions.
Before choosing a rope, assess the pulley diameter, routing arrangement, contact surfaces, and frequency of use. Confirm that the rope construction is suitable for the expected bending and abrasion conditions.
Regular inspection is also essential. Before each operation, check for cuts, exposed fibers, deformation, contamination, or other visible signs of deterioration. Follow the manufacturer's inspection procedures and retirement criteria, and verify that all connectors and terminations are compatible with the rope.
5. Check Electrical Safety Requirements for Live-Line Crossing
Mechanical strength and electrical insulation are two separate considerations. A rope with a high breaking force is not automatically suitable for work near energized conductors.
Donghuan Power Technology describes its product as an insulated Dyneema rope and lists live-line crossing among its intended applications. Contractors should nevertheless request relevant dielectric test reports, applicable standards, and manufacturer documentation before using the rope in a particular electrical environment.
The required verification should reflect the project's voltage level, work method, environmental conditions, and applicable safety procedures. Moisture, dirt, surface damage, and storage conditions may affect electrical performance, so the rope's suitability must be established using appropriate technical evidence rather than product descriptions alone.
Only qualified personnel should approve its use for a specific live-line crossing operation. The rope must not replace required electrical clearances, protective equipment, or an approved work plan.
6. Procurement Checklist for Dyneema Rope
Before purchasing a Dyneema rope for overhead power line construction, contractors should clarify several technical details with the supplier.
-
Application: Identify whether the rope will be used for pilot-line pulling, conductor stringing, or crossing operations.
-
Load requirements: Establish the maximum calculated pulling tension and the required safety factor.
-
Dimensions: Confirm nominal diameter, sheathed outside diameter, and total rope length.
-
Equipment compatibility: Check pulley and sheave dimensions, winch requirements, connectors, and termination methods.
-
Operating environment: Consider abrasion exposure, moisture, contamination, storage, and frequency of deployment.
-
Technical documentation: Request mechanical specifications, inspection instructions, and electrical test records when insulation performance is required.
Providing these details early can help avoid ordering a rope that does not fit the existing equipment or meet the demands of the job. It also allows buyers to compare products according to practical operating requirements rather than relying on a single specification.
Donghuan Power Technology offers multiple diameter and breaking-force options for contractors evaluating rope solutions for transmission line stringing and related utility work. Buyers should confirm the current product configuration and supporting documentation directly with the supplier before finalizing their selection.
Conclusion
Selecting a suitable Dyneema rope for transmission line stringing requires a balanced assessment of tensile strength, rope weight, diameter, sheath protection, equipment compatibility, and electrical safety requirements. Its high strength-to-weight ratio may make field handling easier, but the correct specification depends on the actual loads and conditions encountered on site.
For contractors planning overhead conductor installation or crossing operations, Donghuan Power Technology's 4–18 mm Dyneema rope range provides several options for technical evaluation. Confirm the allowable working load, finished dimensions, equipment compatibility, and relevant test documentation before purchasing to ensure that the rope is appropriate for the intended operation.
http://www.donghuanpower.com
Ningbo Donghuan Power Technology Co., Ltd. -
